Product

RAM & Storage

12GB+512GBRAM: LPDDR5X 9600MbpsStorage: UFS 4.1*Available RAM and storage are less than the total memory due to storage of the operating system and software pre-installed on the device.

Dimensions

Height: 157.6mmWidth: 75.2mmThickness: 8.17mmWeight: 200g*Data tested in Xiaomi Internal Labs, actual results may vary.

Processor

MediaTek Dimensity 8500-Ultra4nm processCPU:1 x Arm Cortex-A725: up to 3.4GHz3 x Arm Cortex-A725: up to 3.2GHz4 x Arm Cortex-A725: up to 2.2GHzGPU:Mali-G720 MC8AI:NPU 880

Display

6.59" 120Hz eye-care AMOLED displayCorning Gorilla Glass 7iPeak brightness: 3500nits (UHBM) @APL25%Resolution: 1.5K, 2756 x 1268, 460 PPIRefresh rate: Up to 120HzTouch sampling rate: 480Hz touch sampling rate, 3200Hz* instantaneous touch sampling rate*Activated in Game Turbo modeColor gamut: 100% DCI-P3Color depth: 12bit, 68 billion colors3840Hz PWM dimming and DC dimmingOriginal color PRO | Pro HDR | Wet Touch Technology 2.0 | Xiaomi Vision Care*HDR10+Dolby Vision®TÜV Rheinland Low Blue Light (Hardware Solution) CertifiedTÜV Rheinland Flicker Free CertifiedTÜV Rheinland Circadian Friendly CertifiedTÜV Rheinland Intelligent Eye Care Certified*This product is not a medical device. Its features are not intended for medical use and are not intended to predict, diagnose, prevent, or cure any disease.

Battery & Charging

6500mAh (typ) silicon-carbon battery67W HyperChargeSupports 50W PPSSupports 22.5W wired reverse chargingSupports PD3.0 / PD2.0USB-C charging port*Please consult the local seller on the availability of the power adapter in the box.*Supports up to 50W charging with PPS-compatible adapters. Actual performance may vary.*Supports up to 22.5W wired reverse charging, compatible with devices verified through Xiaomi Internal Labs. Actual performance may vary depending on battery condition and other factors. Ensure your phone has sufficient charge and that the receiving device is compatible.

Rear Camera

Leica Summilux optical lensVARIO-SUMMILUX 1:1.7-3.0/15-115 ASPH.Leica 23mm main camera50MPLight Fusion 800 image sensor 1/1.55"2.0µm 4-in-1 Super Pixelf/1.7OIS23mm equivalent focal lengthLeica 115mm periscope telephoto50MPf/3.0OIS115mm equivalent focal lengthLeica 15mm ultra-wide camera12MPf/2.215mm equivalent focal length120°Rear camera photography featuresTwo Leica photographic styles (Leica Authentic look | Leica Vibrant look)Leica filters | Leica classic shutter sound | Leica watermarkXiaomi ProFocus (Motion tracking focus, Motion capture and Lightning Burst)Digital zoom up to 120x with AI Ultra ZoomHDRLive momentAuto scene detectionPortrait modeMaster-lens system (23mm, 28mm, 35mm, 46mm, 75mm, 115mm)50MP mode (wide/telephoto)Super macroPanoramaLong exposureDocumentsFastshotPro modeImage formats captured: HEIF, JPEGSupports RAW in Pro modeRear camera video featuresAuto scene detectionShootSteadyPro modeLUT parameters3-Mic arrayTime-lapseRear camera video recording：4K (3840 x 2160) HDR10+ video recording at 30fps, 60fps1080p (1920 x 1080) HDR10+ video recording at 30fps, 60fps720p (1280 x 720) video recording at 30fpsLog video recording up to 4K at 30fps, 60fpsSlow motion video recording:720p at 120fps, 240fps, 960fps1080p at 120fps, 240fps, 960fpsTime-lapse video recording up to 4K at 30fpsNight video recording up to 4K at 24fps

Front Camera

32MP in-display selfie camera32MPf/2.221mm equivalent focal lengthFront camera photography featuresHDRLive momentPortrait modePalm shutterVoice shutterSelfie timerFill lightFront camera video recording：4K (3840 x 2160) HDR10+ video recording at 30fps1080p (1920 x 1080) HDR10+ video recording at 30fps, 60fps720p (1280 x 720) video recording at 30fpsSlow motion video recording up to 1080p at 120fpsTime-lapse video recording up to 4K at 30fpsDual videoVideo teleprompter

Xiaomi HyperAI

AI WritingAI Speech RecognitionAI InterpreterAI SearchAI Dynamic WallpapersAI Creativity AssistantAnd more.Circle to Search with GoogleGoogle Gemini*Xiaomi HyperAI is available in select regions, languages, and device models. Some features may vary by system software version, and work on compatible apps and surfaces. Internet connection required, always check responses for accuracy. Please check your local official website for more information.*Google and Android are trademarks of Google LLC. Available on select devices and internet connection required. Works on compatible apps and surfaces. Results may vary depending on visual matches. Check responses.*Google and Gemini are trademarks of Google LLC. Check responses. Setup required. Compatibility and availability varies. 18+.

Cooling system

Xiaomi 3D IceLoop System

Security & Authentication

In-screen fingerprint sensorAI Face Unlock

NFC

Yes

Network & Connectivity

Dual SIM (nano SIM + nano SIM or nano SIM + eSIM, eSIM + eSIM)**Use of eSIM requires a wireless service plan. This service plan may be subject to certain restrictions of use on switching service providers and roaming (even after contract expiration). eSIM availability may vary depending on country/region and carrier. For more details, please contact your carrier for more information.Network bands:5G: SA: n1/2/3/5/7/8/12/20/26/28/34/38/39/40/41/48/66/71/75/77/785G: NSA: n1/2/3/5/7/8/20/28/38/40/41/66/71/75/77/784G: LTE FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/26/28/32/66/714G: LTE TDD: B34/38/39/40/41/42/483G: WCDMA: B1/2/4/5/82G: GSM: B2/3/5/8Wireless Networks:Wi-Fi 6E*Wi-Fi 6E/Wi-Fi 6 capability may vary based on regional availability and local network support.Supports 2x2 MIMO, Wi-Fi DirectBluetooth 6.0

Dust & Water Resistance

IP68*The device has been tested and certified to be resistant to splash, water, and dust in the presence of specific laboratory conditions with the classification IP68 ingress protection based on IEC 60529:1989+A1:1999+A2:2013.Please be noted that the test conditions of water resistance include: submersion in static freshwater up to a depth of 1.5 meters, up to 30 minutes, with a temperature delta between the water and product being 5°C or less. Such water resistance features only pertain to specific conditions tested in a laboratory environment, which do not correspond to the normal conditions of use by consumers. Therefore, ingress protection is not assured if the product is subjected to environments beyond the test conditions.We recommend that you do not test it by yourself. Not advised for beach or pool use. Ingress protection might deteriorate from daily wear and tear, physical damage and/or disassembly needed in case of repair.Avoid charging the product, operating the physical buttons, or removing the SIM tray when product is exposed to moisture.Please carefully refer to user's manual for other safety instructions.The warranty will not cover the liquid damage caused in the environments beyond the IP68 test condition.

Video & Audio Playback

Dual stereo speakersDolby Atmos®, Hi-Res & Hi-Res WirelessSupports audio formats: MP3, FLAC, APE, AAC, OGG, WAV, AMR, AWBSupports video formats: MP4, MKV, WEBM, 3GP, TSSupports HDR display when playing HDR10, HDR10+, Dolby Vision® video content

Navigation & Positioning

GPS: L1 + L5GLONASS: G1｜Beidou: B1I + B1C + B2a | Galileo: E1 + E5a｜NavIC: L5 | QZSS: L1 + L5A-GPS supplementary positioning｜Wireless network | Data network

Sensors

Proximity sensor | Ambient light sensor | Accelerometer | Gyroscope | Electronic compass | IR blaster | Flicker sensor | X-axis linear vibration motor | Color temperature sensor

Operating System

Xiaomi HyperOS 3

Package contents

Mobile Phone / Adapter / USB Type-C Cable / SIM Eject Tool / Protective Case / Safety Information / Quick Start Guide and Warranty Card / Desiccant*Contents in the package may differ across different regions.

Processor

Snapdragon® 8 Elite Gen 5 Mobile Platform3nm manufacturing processCPU:2 x Prime Core, up to 4.6GHz6 x Performance Core, up to 3.62GHzGPU:Adreno™ GPUAI:Qualcomm AI engine

Storage & RAM

16GB + 512GBRAM: LPDDR5XStorage: UFS 4.1*Available RAM and storage are less than the total memory due to storage of operating system and software pre-installed on the device.

Dimensions

Height: 162.9mmWidth: 77.6mmThickness: 8.29mmWeight: 218.4g (Black and White) / 219g (Starlit Green)*Data tested by Xiaomi Internal Labs, actual results may vary.

Display

6.9" Xiaomi HyperRGB OLED display (174.5mm)Xiaomi Shield Glass 3.0Resolution: 2608 x 1200 Xiaomi HyperRGBRefresh rate: 1-120HzTouch sampling rate: Up to 300HzColor gamut: DCI-P3Color depth: 12bitBrightness: 3500 nits multi-scenario peak brightnessEye-care DC dimmingOriginal color PRO | Pro HDR | Wet touch technologyHDR10+, Dolby Vision®TÜV Rheinland Low Blue Light (Hardware Solution) CertifiedTÜV Rheinland Flicker Free CertifiedTÜV Rheinland Circadian Friendly Certified

Rear Camera

Leica Summilux optical lensVARIO-APO-SUMMILUX 1:1.67-2.9/14-100 ASPH.Leica 23mm main camera50MPLight Fusion 1050L image sensor1" sensor size3.2μm 4-in-1 Super Pixelƒ/1.67OIS23mm equivalent focal lengthLeica 200MP 75-100mm telephoto200MPSamsung HPE image sensor1/1.4" sensor size2.24μm 16-in-1 pixel sizeƒ/2.39-ƒ/2.96OIS75-100mm equivalent focal lengthLeica 14mm ultra-wide camera50MPSamsung JN5 image sensor1/2.75" sensor size1.28μm 4-in-1 pixel sizeƒ/2.214mm equivalent focal lengthFOV 115°Rear camera photography featuresTwo Leica photographic styles (Leica Authentic Look, Leica Vibrant Look)Leica filters | Leica classic shutter sound | Leica watermarkXiaomi ProFocus (Motion tracking focus, eye tracking focus and motion capture)Lightning BurstDigital zoom up to 120xXiaomi ProCutHDRDynamic shot50MP (Wide/Ultra wide/Telephoto)200MP mode (Telephoto)Live CinematographySuper MacroSupermoon (Auto)FastshotLong ExposurePanoramaPortrait modeDocuments modePro modeImage formats captured: JPG, HEIFRAW modeRear camera video recording8K (7680x4320) video recording at 30fps4K (3840x2160) Dolby Vision® video recording at 30fps, 60fps, 120fps1080p (1920x1080) Dolby Vision® video recording at 30fps, 60fps720p (1280x720) video recording at 30fpsLog video recording up to 4K at 120fpsAcademy Color Encoding SystemSlow motion video recording up to 1080p at 1920fpsShootSteady video recording up to 2.8K at 60fpsNight video recording up to 4K at 24fpsTime-lapse video recording up to 4K at 30fpsMovie modePro mode4-Mic array

Front Camera

50MP Auto Focus Camera50MPOV50M image sensor1/2.87" sensor size1.22μm 4-in-1 binningƒ/2.221mm equivalent focal length90° FOVFront camera photography featuresDynamic shotHDRPortrait modePalm shutterVoice shutterSelfie timerFront camera video recording4K (3840x2160) Dolby Vision® video recording at 30 fps, 60fps1080p (1920x1080) Dolby Vision® video recording at 30 fps, 60 fps720p (1280x720) video recording at 30 fpsSlow motion video recording up to 1080p at 120fpsTime-lapse video recording up to 4K at 30fpsVideo teleprompter

Battery & Charging

6000mAh (typ)90W wired HyperCharge50W wireless HyperChargeSupports QC3+ / QC3.0 / QC2.0 / PD3.0 / PD2.0 / 90W PPS*Please consult the local seller on the availability of the power adapter in the box. Wireless chargers sold separately.

Xiaomi HyperAI

AI WritingAI Speech RecognitionAI InterpreterAI SearchAI Dynamic WallpapersAI Creativity AssistantAnd more.Circle to Search with GoogleGoogle Gemini*Visuals and results for illustrative purposes and may vary.*Xiaomi HyperAI is available in select regions, languages, and device models. Works on compatible apps and surfaces. Internet connection required, always check responses for accuracy. Please check your local official website for more information.*AI Writing, AI Speech Recognition, AI Interpreter, AI Dynamic Wallpapers and AI Search are available in select regions, languages, and device models. Internet connection required. Check responses for accuracy.*Results are for illustrative purposes only and may vary. Check responses. Setup required. Compatibility and availability varies. 18+. Google and Gemini are trademarks of Google LLC.

Cooling System

Xiaomi 3D Dual-Channel IceLoop system

Security & Authentication

Ultrasonic in-screen fingerprint sensorAI face unlock

Network & Connectivity

Dual SIM (nano SIM + nano SIM or nano SIM + eSIM, eSIM + eSIM)*Dual SIM may vary based on region availability. Use of eSIM requires a wireless service plan. This service plan may be subject to certain restrictions of use on switching service providers and roaming (even after contract expiration). eSIM availability may vary depending on country/region and carrier. For more details, please see Xiaomi official website and contact your carrier for more information.Network bands5G SA: n1/2/3/5/7/8/12/20/25/26/28/38/40/41/48/66/71/75/77/78/795G NSA: n1/2/3/5/7/8/20/28/38/40/41/66/71/75/77/78/794G: LTE FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/32/66/714G: LTE TDD: B38/39/40/41/42/483G: WCDMA: B1/2/4/5/6/8/192G: GSM: B2/3/5/8Supports 4x4 MIMOWireless NetworksWi-Fi 7 capability*Wi-Fi 7/Wi-Fi 6E/Wi-Fi 6 capability may vary based on regional availability and local network support.Multi-Link OperationSupports 2x2 MIMO, 8x8 Sounding for MU-MIMO, Wi-Fi Direct, Miracast, Dual band SimultaneousBluetooth 6.0, Dual-BluetoothSupports SBC/AAC/AptX/AptX HD/AptX Adaptive/LDAC/LHDC 5.0/LC3/MIHC

NFC

Yes

Navigation & Positioning

GPS: L1+L5 | Galileo: E1+E5a | GLONASS: G1 | Beidou | QZSS: L1 + L5 | NavIC: L5A-GPS supplementary positioning | Electronic compass | Wireless network | Data network | SAP

Video & Audio playback

Stereo speakersHi-Res & Hi-Res Audio Wireless certification, Dolby Atmos®Supports audio formats: MP3, FLAC, APE, AAC, OGG, WAV, AMR, AWBSupports video formats: MP4, MKV, WEBM, 3GP, TSSupports HDR display when playing HDR10/HDR10+, Dolby Vision®, HDR Vivid video content

Splash, Water and Dust Resistant

IP68*The device has been tested and certified to be resistant to splash, water, and dust in the presence of specific laboratory conditions with the classification IP68 ingress protection based on IEC 60529:1989+A1:1999+A2:2013 and EN 60529:1991+A1:2000+A2:2013. Please be noted that the test conditions of water resistance include: submersion in static freshwater up to a depth of 6 meters, up to 30 minutes, with a temperature delta between the water and product being 5°C or less. Such water resistance features only pertain to specific conditions tested in a laboratory environment, which do not correspond to the normal conditions of use by consumers. Therefore, ingress protection is not assured if the product is subjected to environments beyond the test conditions. We recommend that you do not test it by yourself. Not advised for beach or pool use. Ingress protection might deteriorate from daily wear and tear, physical damage and/or disassembly needed in case of repair. Avoid charging the product, operating the physical buttons, or removing the SIM tray when product is exposed to moisture. Please carefully refer to user's manual for other safety instructions. The warranty will not cover the liquid damage caused in the environments beyond the IP68 test condition.

Sensors

Proximity sensor | Ambient light sensor | Accelerometer | Gyroscope | Electronic compass | X-axis linear vibration motor | IR blaster | Flicker sensor | Laser focus sensor | Barometer | Hall sensor

Operating System

Xiaomi HyperOS 3

Package contents

Mobile Phone / USB Type-C Cable / SIM Eject Tool / Protective Case / Safety Information / Quick Start Guide and Warranty Card / Desiccant*Contents in the package may differ across different regions.

Dimensions

Height: 169.70mmWidth: 79.14mmThickness: 8.45mmWeight: 225g*Data regarding dimensions and weight tested in Xiaomi Internal Labs, actual results may vary.

Display

6.99" FHD+ AMOLED displayResolution: 2396 × 1080Refresh rate: Up to 120HzTouch sampling rate: 240HzBrightness: 1800 nits peak brightness, 1200 nits HBM, 700 nits (typ)Color depth: 8bitContrast ratio: 5,000,000:1DCI-P3 wide color gamutSunlight displayReading mode4096-level brightness adjustmentTÜV Rheinland Low Blue Light Certification (Hardware Solution) | TÜV Rheinland Circadian Friendly CertificationHigh Efficiency Video Coding (HEVC)

Audio

200% volume boost*Data tested by Xiaomi Internal Labs, 200% volume boost refers to 16 levels of volume compared to 15 levels, and actual effects may vary due to software and scenarios, please refer to the actual use.Hi-Res Audio

Rear camera

50MP main camera5P lensf/1.8Rear camera video recording1080p (1920 × 1080) HD video recording at 30 fps720p (1280 × 720) HD video recording at 30 fps

Front camera

16MP front cameraSensor size 1/3"f/2.55P lensFront camera video recording1080p at 30fps720p at 30fps

Battery and charging

7700mAh (typ) battery45W turbo charging45W In-box charger*Please consult your local seller regarding the availability of a power adapter in the box.

Processor

Snapdragon® 4 Gen 4 Mobile Platform4nm manufacturing process technologyCPU: Octa-core processor, up to 2.3GHzGPU: Adreno

RAM & Storage

6GB+128GB | 6GB+256GB | 8GB+256GBExpandable storage up to 2TBLPDDR4X + UFS2.2*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed on the device.*Actual support and compatibility of memory cards may vary between manufacturers.

Network and Connectivity

SIM 1 + Hybrid (SIM or microSD) Dual standbyNetwork BandsSupports 5G / 4G / 3G / 2G2G: GSM: 850 900 1800 1900MHz3G: WCDMA:1/2/4/5/84G: LTE FDD:1/2/3/4/5/7/8/12/17/18/19/20/26/28/32/664G: LTE TDD: 38/40/41/42/485G: SA: n1/2/3/5/7/8/12/20/26/28/38/40/41/48/66/77/785G: NSA: n1/2/3/5/7/8/20/28/38/40/41/66/77/78*Connectivity and network bands may vary based on region availability and local operator support.Wireless NetworksWi-Fi Protocol: 802.11a/b/g/n/acSupports 2.4GHz Wi-Fi | 5GHz Wi-FiSupports Wi-Fi DirectBluetooth 5.1

NFC

Yes*NFC availability may vary between markets.

AI features

AI Erase Pro, AI Sky, AI Image Expansion*AI Erase Pro feature available via OTA.*Availability of AI features may vary based on region. Please check official website for more information.*Some of the AI Creativity Assistant features require internet connection, and may vary by system software and Gallery Editor app versions. Please refer to actual use experience.Circle to Search with Google, Google Gemini*Available on select devices and internet connection required. Works on compatible apps and surfaces. Results may vary depending on visual matches. Google is a trademark of Google LLC.*Google and Gemini are trademarks of Google LLC. Check responses. Setup required. Compatibility and availability varies.

Security

In-screen fingerprint sensorAI face unlock

Navigation & positioning

GPS: L1 | A-GPS supplementary positioning | GLONASS: G1 | BDS: B1I+B1C | Galileo E1 | Electronic compass | Wireless network | Data network | Sensor Assisted Positioning

Sensors

Virtual Proximity sensor | Ambient light sensor | Accelerometer | Electronic compass | IR blaster

Operating system

Xiaomi HyperOS 3

Splash, Water and Dust Resistant

IP65*The device is certified to be splash and dust resistant exclusively under specific laboratory conditions not corresponding to normal use conditions. The warranty does not cover liquid damage caused by conditions other than test conditions. Ingress protection might deteriorate due to wear and tear, physical damage and/or disassembly needed for repair. For more information, please see Xiaomi official website.

Package contents

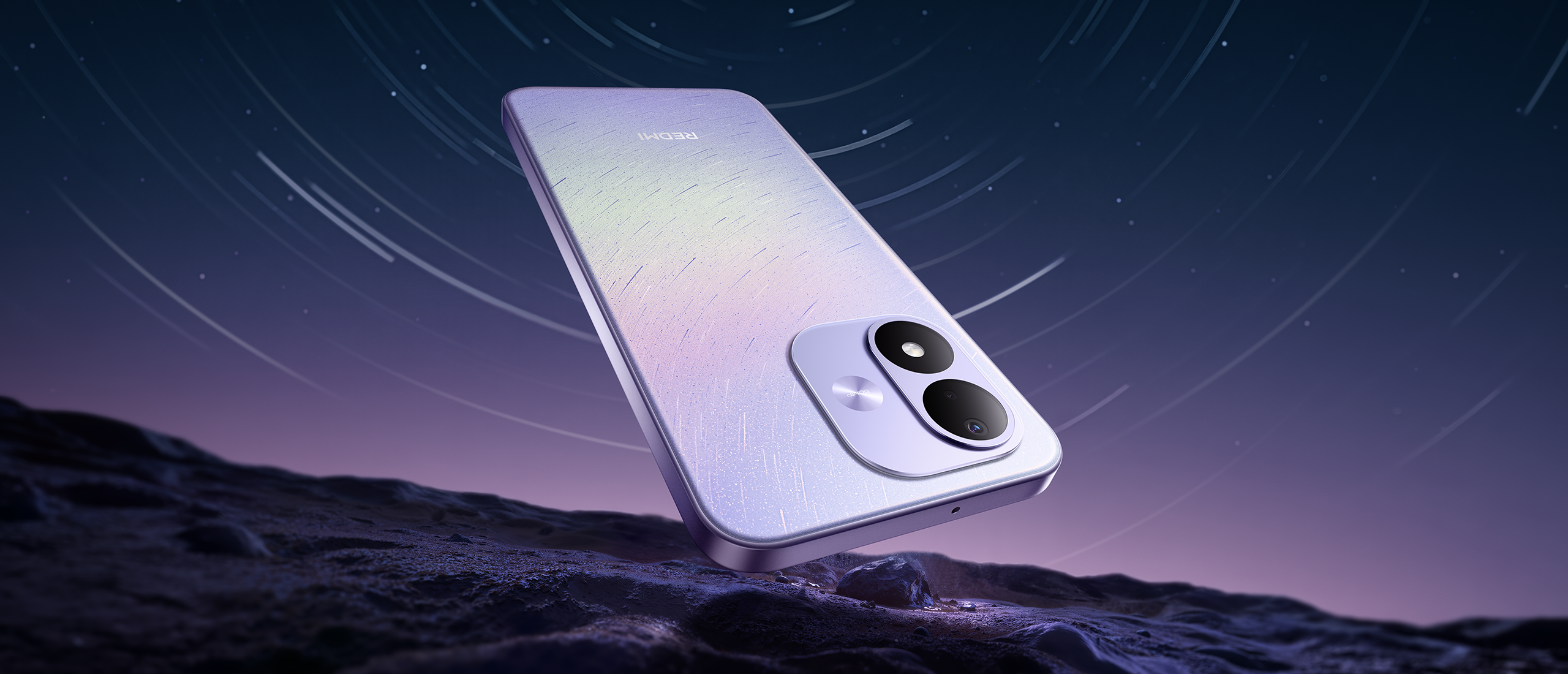

REDMI Note 17 5G / Adapter / USB Type-C Cable / SIM Eject Tool / Protective Case / Quick Start Guide / Warranty Card*Content in the package may differ across different regions.

KSP

Immersive 6.9" displayMassive 6000mAh (typ) batteryPowered by Xiaomi HyperOSPowerful octa-core processorSleek and refined design13MP AI dual camera*Availability of Xiaomi HyperOS features, apps and services may vary depending on softeware version and phone model.*The dual-camera system consists of one 13MP main camera and one auxiliary sensor.

KSP

Immersive 6.88" displayMassive 5200mAh (typ) batterySleek and refined designPowerful octa-core processor13MP AI cameraSide fingerprint and face unlock
