Key Features
* IEEE 802.3af/at power on POE port
* Supply power to wireless access points and surveillance cameras over Cat cable
* POE ports support MDI/MDIX
* POE Lines: End-Span(12+,36-), Mid-Span(25+,78-)
* Support IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
* LED indicators for monitoring power, link, activity and speed
* Network Media: 10BASE-T: Cat3 or more UTP(≤250 meter);100BASE-TX: Cat5 or more UTP (≤100 meter); Cat6 or more UTP (≤150 meter)
* Working Environment: Operating Temperature: 0 ° ~ 70 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing
Read More Less
The POE switches provide power and data transmission via Cat cables. The auto-sensing function can supply power to PD device (IEEE802.3af/at standard). If the PoE device disconnected, it would stop supplying power. The POE Converter features a simple and reliable design, automatic identification of PoE supply voltage and power, speed, full duplex, and Auto Uplink cable type.
This cost-effective switch can apply to a wireless access point (AP) and IP-based surveillance Network solutions.
| Part Number | Description |

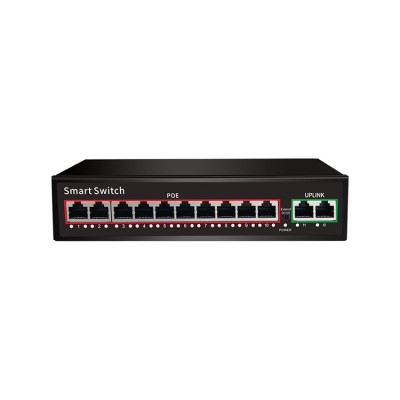

| ES-FE10P2TP | 10/100M 10POE+2RJ45 |
Imaging
| 10/100M 10POE | 10/100M 10POE |
