Key Features
* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ, IEEE802.1d Spanning Tree.
* Hot Plug-gable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Stable performance more than 50 thousands hours with fault-free.
Read More Less
The fiber switches are unmanageable, they can extend the network transmission from 100m to 120km and can realize the interconnection between motherboard servers, Repeaters, hubs, switches, and terminals. The plug-and-play design makes easy installation, with no on-site adjustment. Operation status can be monitored through a set of Diagnostic LEDs.
| Part Number | Description |
| ES-FE8F2TP-xx | 10/100M 8Fiber 2RJ45, xx=550m~120km |
| ES-GE8F2TP-xx | 10/100/1000M 8Fiber 2RJ45, xx=550m~120km |
| ES-FE8F2TP-SFP | 10/100M 8Fiber 2RJ45, supports 155Mbps SFP |
| ES-GE8F2TP-SFP | 10/100/1000M 8Fiber 2RJ45, supports 1.25Gbps SFP |

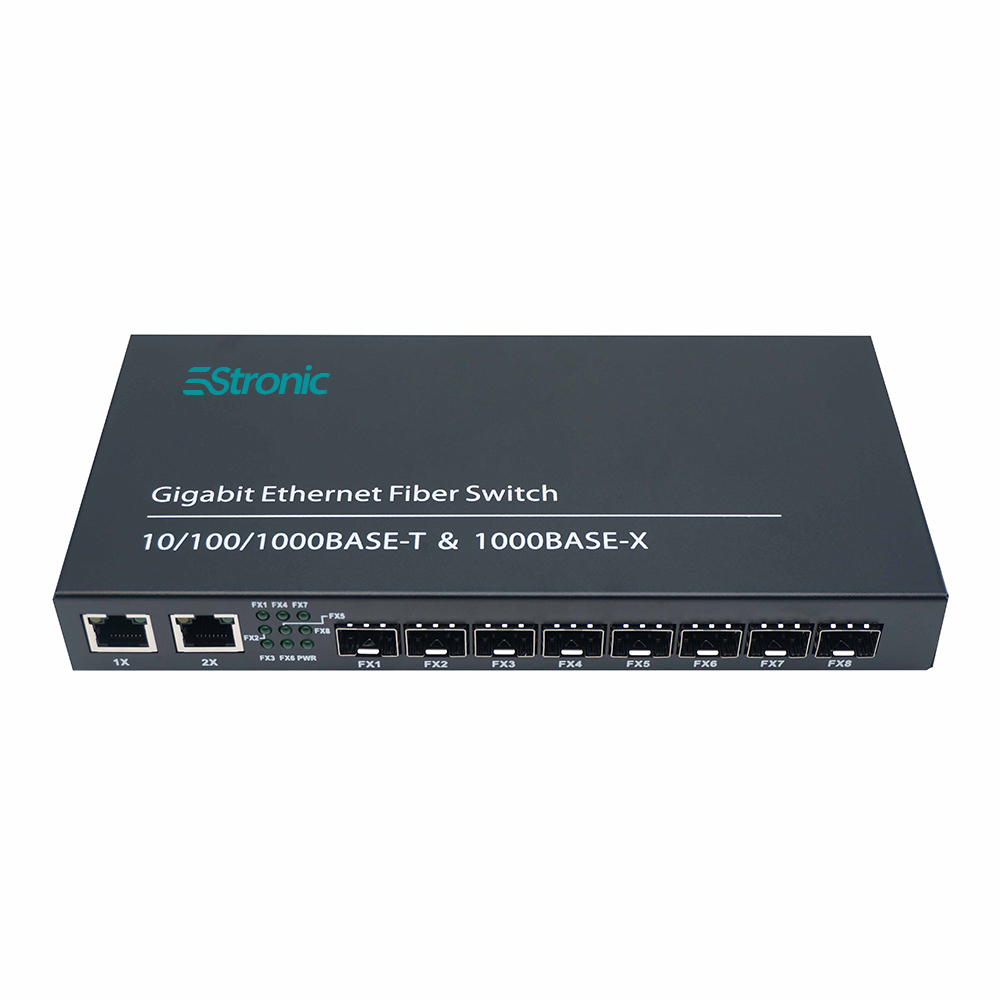

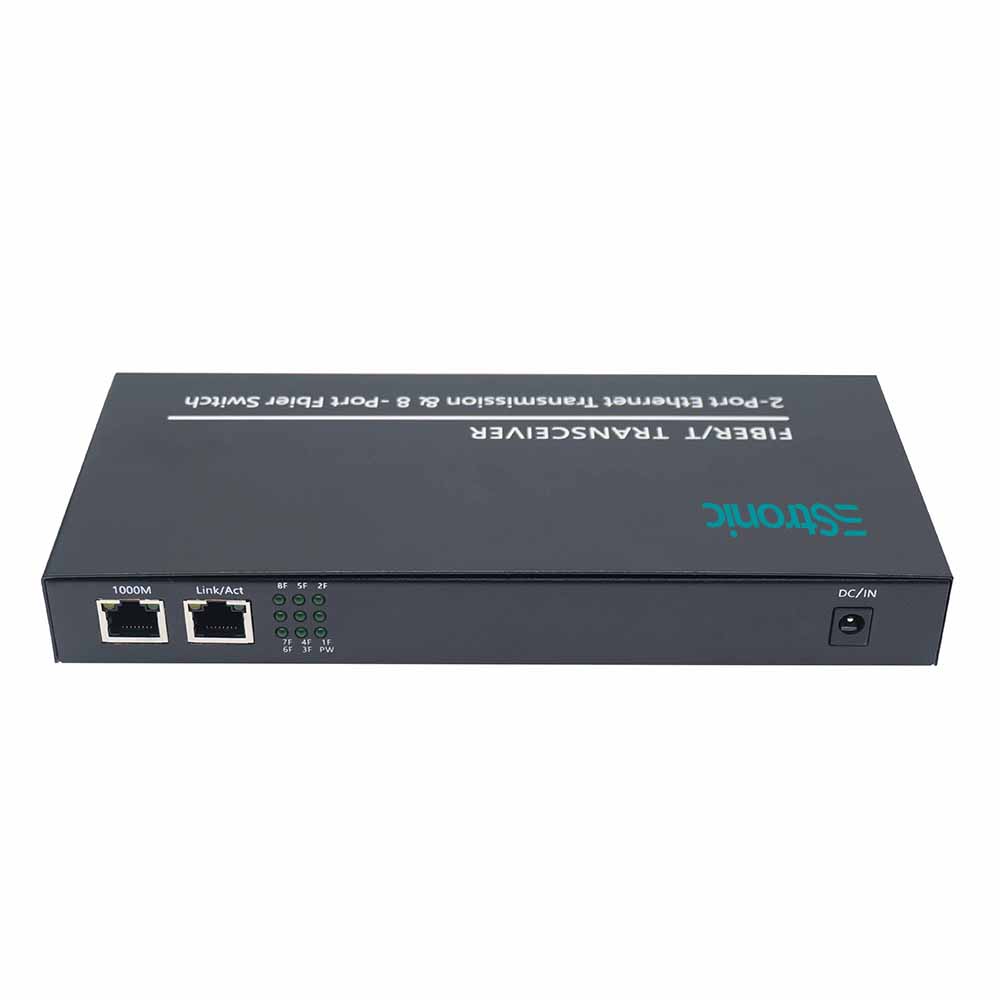

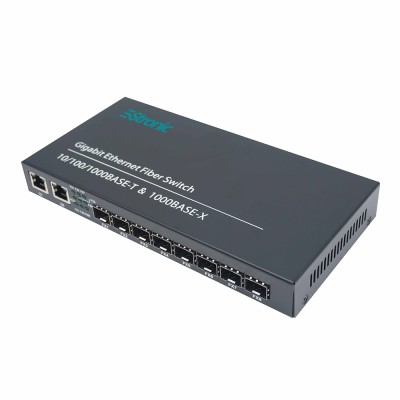

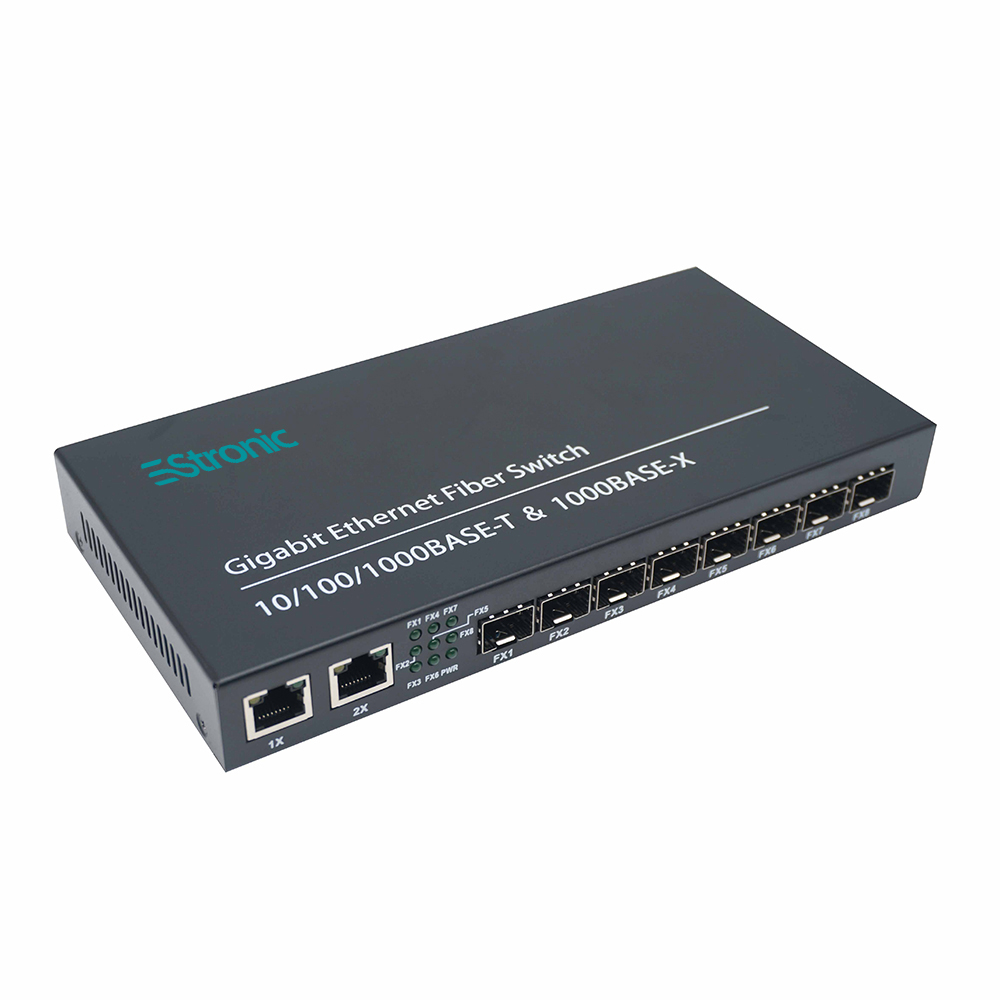

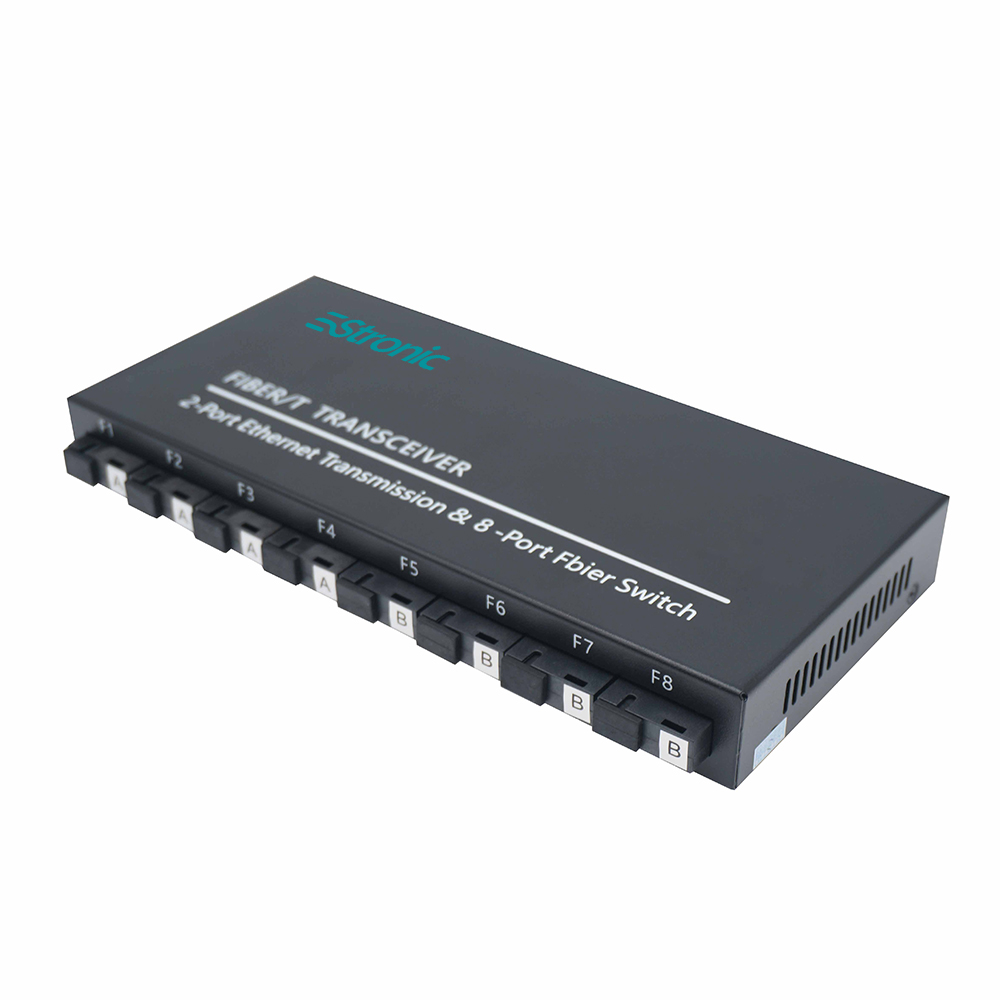

Imaging
| 8Fiber 2RJ45 | 8Fiber 2RJ45 |
