Chat with our Expersts - Live SKU: GMKtec NucBox M8
Vat Not Included
Only 1 Left in stock
Minimum Order Quantity: 1 Piece
Key Features
GMKtec NucBox M8 Mini PC CPU: AMD Ryzen 5 Pro 6650H 6 Cores, 12 Threads, Zen 3+ Architecture, 3.3GHz, Max 4.5 GHz GPU: AMD Radeon 660M, 6 Cores 1900 Mhz Max 2GB RAM: 16GB LPDDR5 6400 MT/s Onboard Memory Storage: 512 GB PCIe 3.0 M.2 SSD 2280 (up to 16TB) Network: Dual 2.5G RJ45 Gigabit Network Wireless: Dual Band Wi Fi 6/6E (RZ616), Bluetooth 5.2 Display: DPv1.4 (4K@60Hz), 1 x HDMI 2.0 (4K@60Hz), 1 x Type C 4.0 (4K60Hz) Interface: USB4, OCuLink, 3× USB-A 3.2, USB 2.0, 3.5mm Audio/Mic OS: Windows 11 Pro Cooling: Advanced Dual-Fan Vapor Chamber System for better heat control Power Supply: 100 W UK Power Adapter Warranty: 1 Year
Read More Less
Description Specifications
AMD Ryzen™ 5 PRO 6650H
For Every Power User
From Work to Play
6 Cores, 12 Threads，3.3GHz
1900 MHz
PCle Gen4x4
2xPCle 3.0 M.2 2280 SSD (MAX 16TB)
Support PCle 4.0
BT5.2+Dual 2.5G LAN
HDMI 2.0 + DP 1.4 + USB4.1
6400MT/s (Onboard)
The all-new AMD Ryzen PRO 6000 (Rembrandt) series delivers dual optimization of CPU and integrat-
ed graphics, built on advanced 6nm process technology with the ZEN3+ architecture. This high-performance mobile processor is designed specifically for stable and efficient business performance.
The RDNA 2 architecture delivers near discrete GPU-leveel graphicsperformance. With hardware-level ray tracing and FSR 22.0 supportIt handles everyday media playback, Photoshop graphiccs processing effortlessly, and smoothly supports light gaming andd office/creative tasks.
OCuLink delivers full PCIe 4.0 bandwidth (64Gbps) for near-lossless eGPU performance
OCuLink delivers full PCIe 4.0 bandwidth (64Gbps)for near-lossless eGPU performance
Dual 3D surround air intakes + dual-fan design for optimal heat dissipationPeak 40W performance release
Equipped with dual 2.5G Ethernet ports and WiFi 6E,providing high-speed, stable connectivity for both wiredand wireless connections. Enjoy lag-free online gamingand 8K video streaming.
Specifications
| Parameter | Details |
|---|---|
| Model | GMKtec NucBox M8 |
| CPU Model | AMD Ryzen™ 5 PRO 6650H |
| CPU | AMD Ryzen™ PRO 6000 Series Processor, 6 Cores, 12 Threads TSMC 6nm FinFET Process Base Frequency 3.3GHz, Max Boost up to 4.5GHz 3MB L2 Cache / 16MB L3 Cache Zen 3+ Architecture |
| GPU | AMD Radeon™ 660M Graphics 6 Cores, up to 1900MHz |
| Memory (RAM) | On-board LPDDR5-6400 Memory 16GB standard configuration Non-upgradable design |
| Storage (ROM) | PCIe 3.0 M.2 2280 SSD 512GB / 1TB options |
| Storage Expansion | 2 × M.2 2280 PCIe 4.0 ×4 SSD Slots Supports up to 8TB per slot (Max 16TB) SATA SSD not supported |
| Graphics Output | Triple display output via HDMI + DisplayPort + USB4 Supports up to 8K resolution |
| Network | Wi-Fi 6E (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (RTL8125BG) |
| Power | Built-in coin cell battery DC Power Adapter 20V / 5A, 100W |

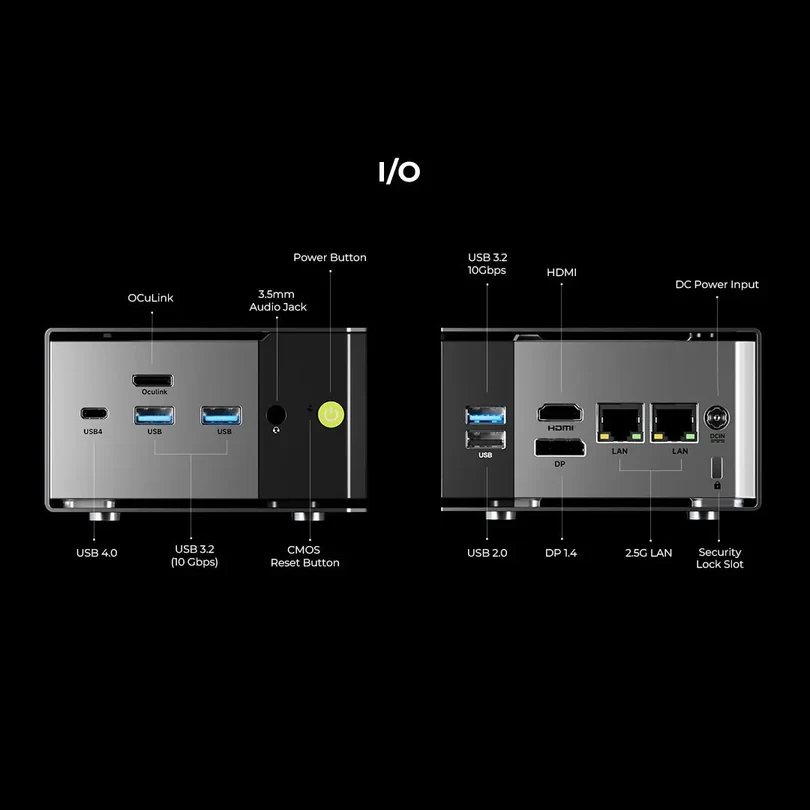

| External Ports | USB-A: 3 × USB 3.2 Gen2 (10Gbps) + 1 × USB 2.0 USB4: 1 × USB4 Full-Function Port (40Gbps / PD 100W / DisplayPort 1.4) HDMI: 1 × HDMI 2.0 DisplayPort: 1 × DisplayPort 1.4 OCulink: 1 × OCulink PCIe Gen4 ×4 Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) |
| OCulink Notice | The OCulink port does not support hot-plugging. Please connect or disconnect the cable only when the device is powered off. |
| Operating System | Windows 11 Pro |
| Language Support | 14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic |
| Chassis Dimensions | 107 × 111 × 63 mm |
| Weight | Approx. 590 g |
| Color | Metallic Silver |
| Working Temperature | 0°C – 40°C |
| Warranty | 1-Year Limited Warranty |
| Certifications | CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report |
| Packaging List | User Manual Warranty Card Power Adapter HDMI Cable |
