Key Features
* Support ITU-T G.984.2 GPON OLT C++ application
* Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
* 1490nm continuous-mode transmitter with DFB LD
* 1310nm burst-mode receiver with APD-TIA
* 2-wire interface for integrated digital diagnostic Monitoring
* Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
* SFP package with SC/UPC receptacle optical interface
* Single +3.3V power supply
* Operation case temperature -40~85°C for industrial and 0~70°C for commercial
* RoHS6 compliance
Read More Less
The GPON OLT SFP transceiver provides up to 2.5G-TX/1.25G-RX up to 20km over single-mode fiber (SMF)
using a wavelength of 1490nm-TX/1310nm-RX via an SC connector. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. It is fully compliant with SFF-8472, ITU-T G.984.2, and RoHS standards and is ideal forGPON system and FTTx applications.
| Part Number | Description |
| YV-GOLT-C++ | GPON OLT SFP 2.5G/1.25G Tx1490/Rx1310nm 20km SC C++＞5db |
Imaging

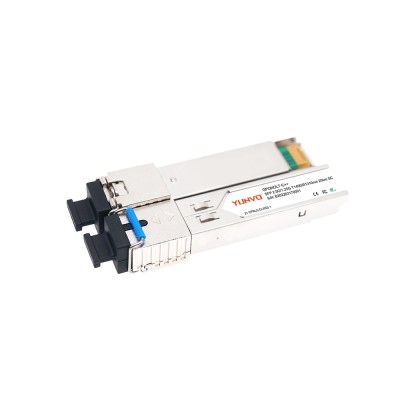

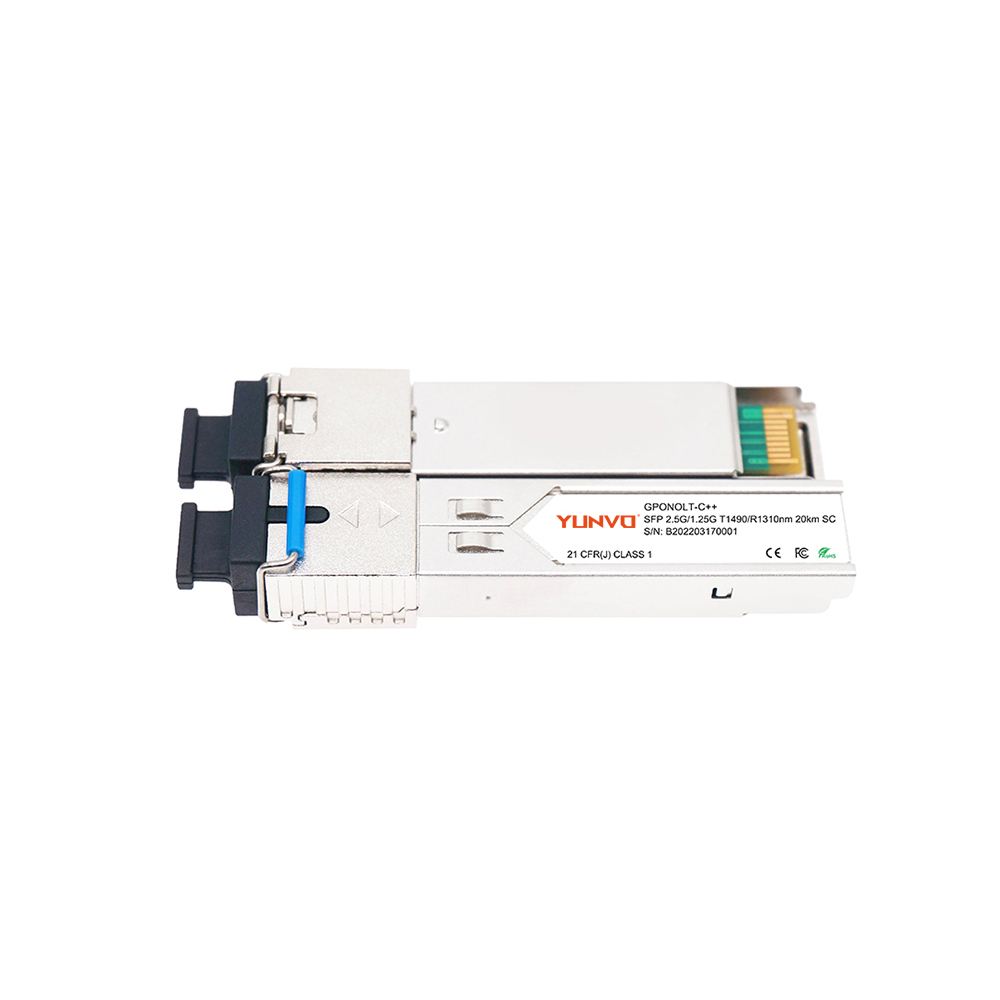

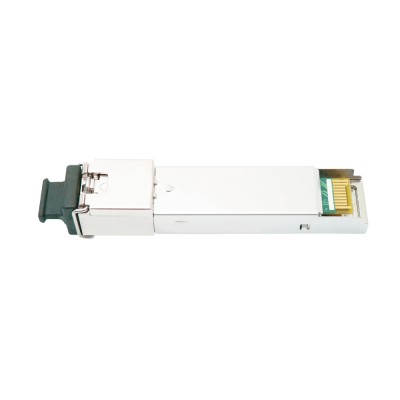

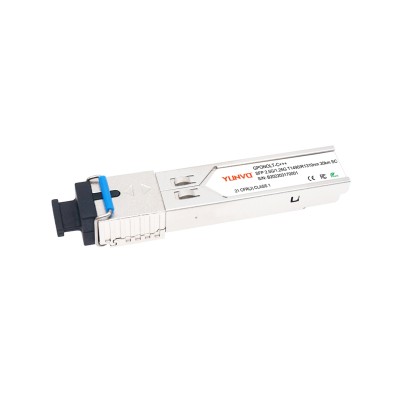

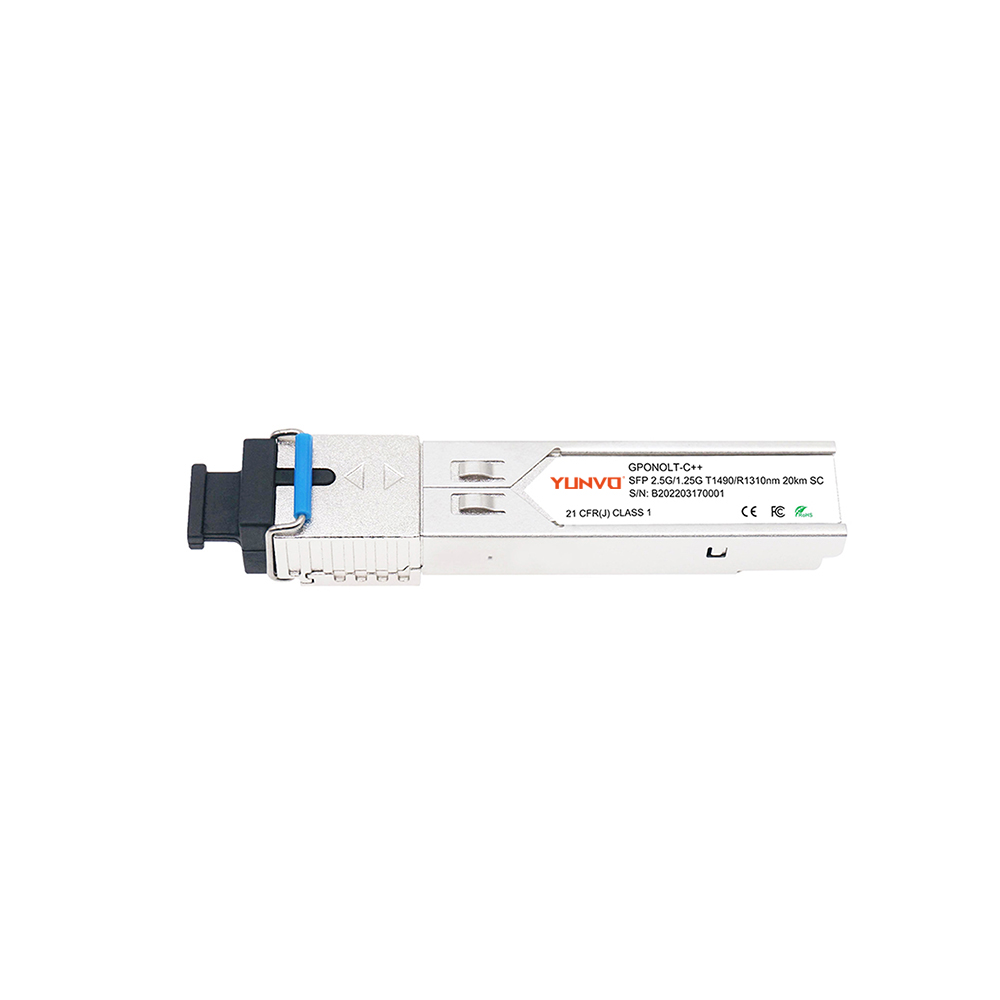

| GPON OLT SFP C++ | GPON OLT SFP C++ |
