Key Features
* 4 Independent full-duplex channels
* Up to 11.2Gbps per channel bandwidth
* Aggregate bandwidth of > 40Gbps
* QSFP MSA compliant
* Duplex LC Connector
* Up to 40 km transmission
* CML-compatible electrical I/O
* Single +3.3V power supply operating
* IEEE 802.3ba Electrical Interface
* Built-in digital diagnostic functions
* Temperature range 0°C to 70°C
* RoHS Compliant Part
Read More Less

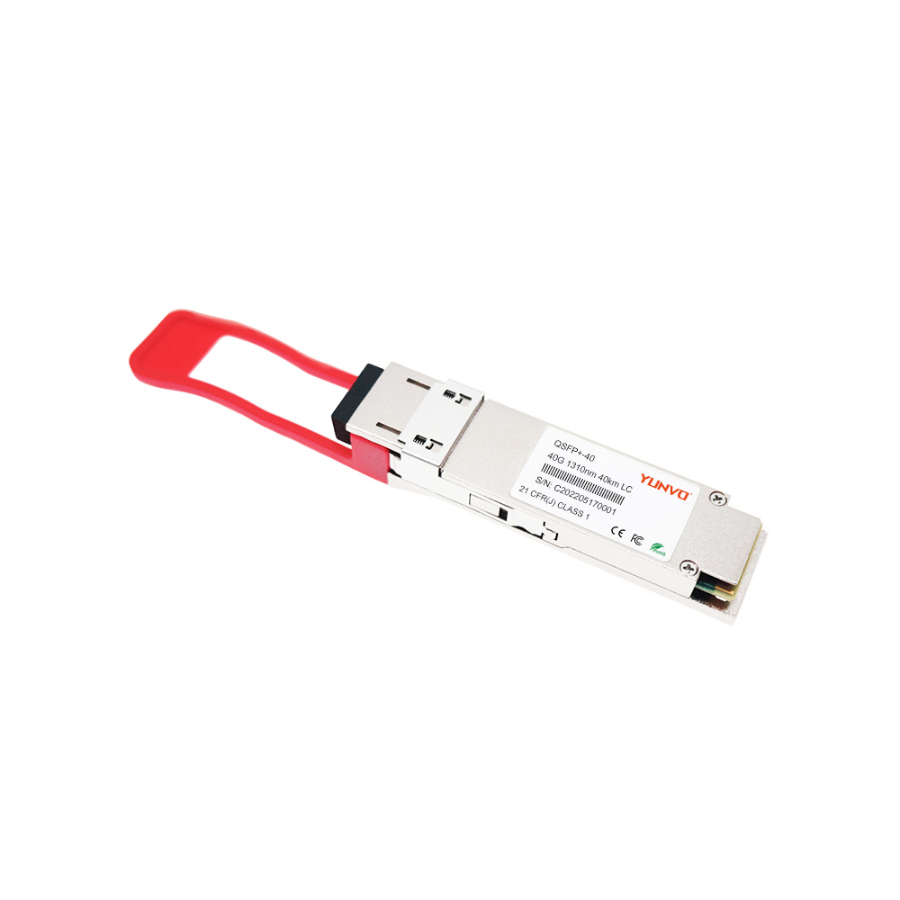

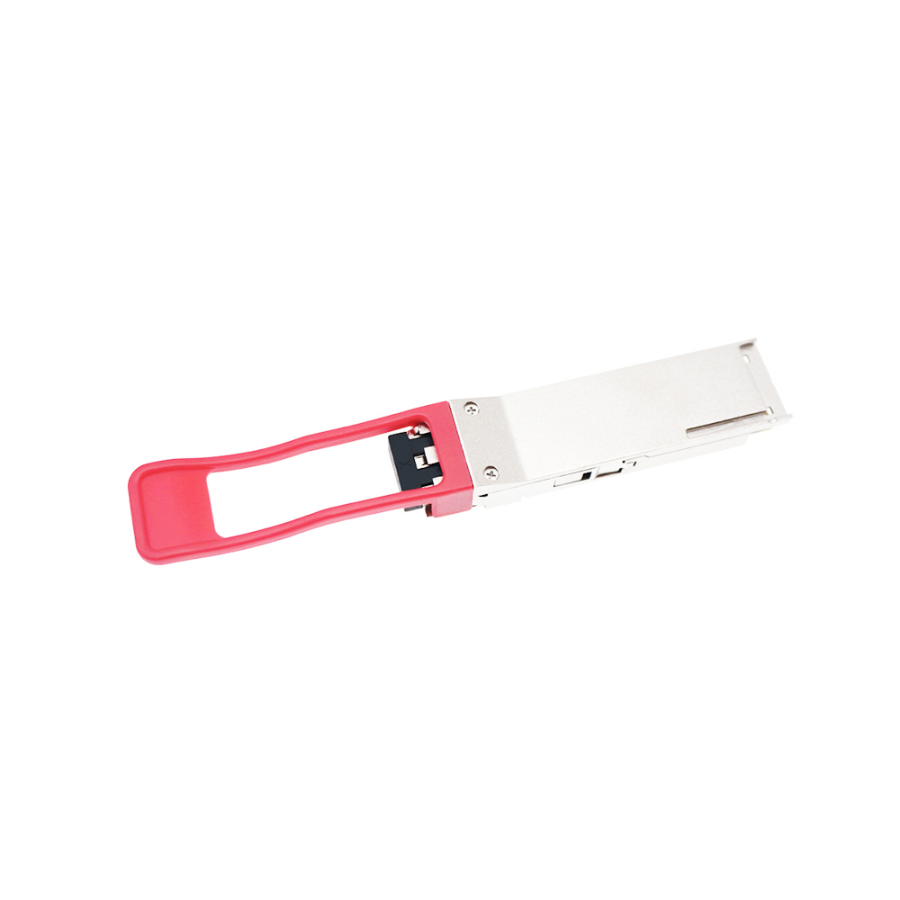

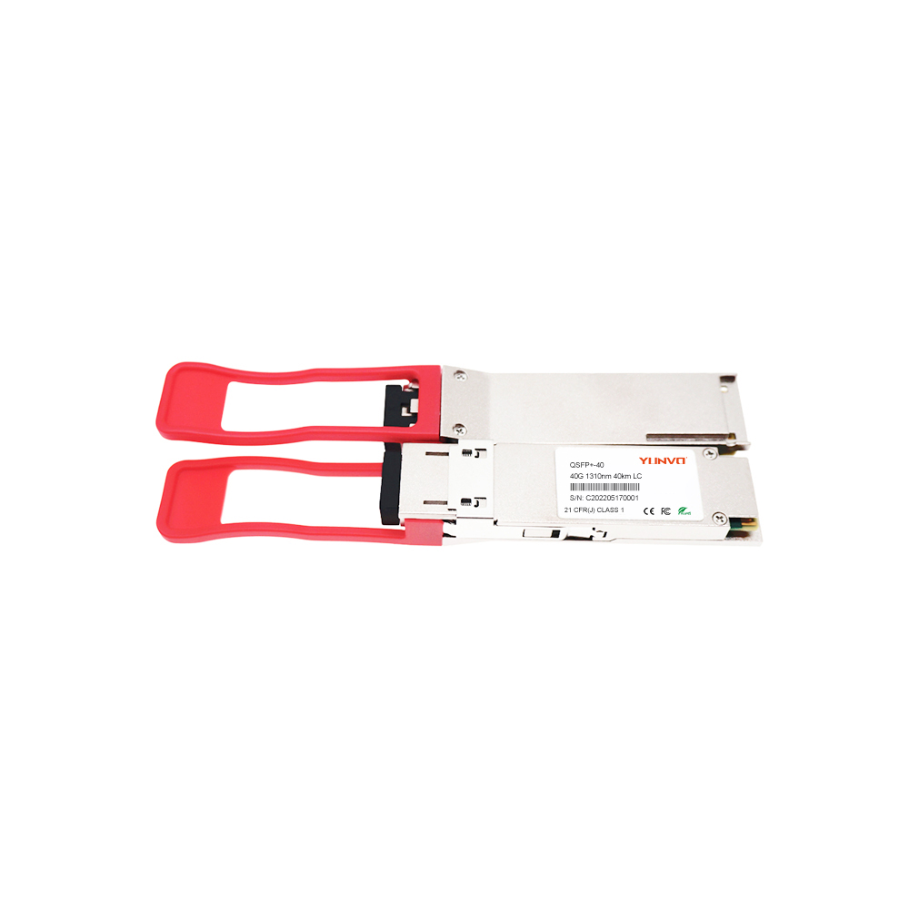

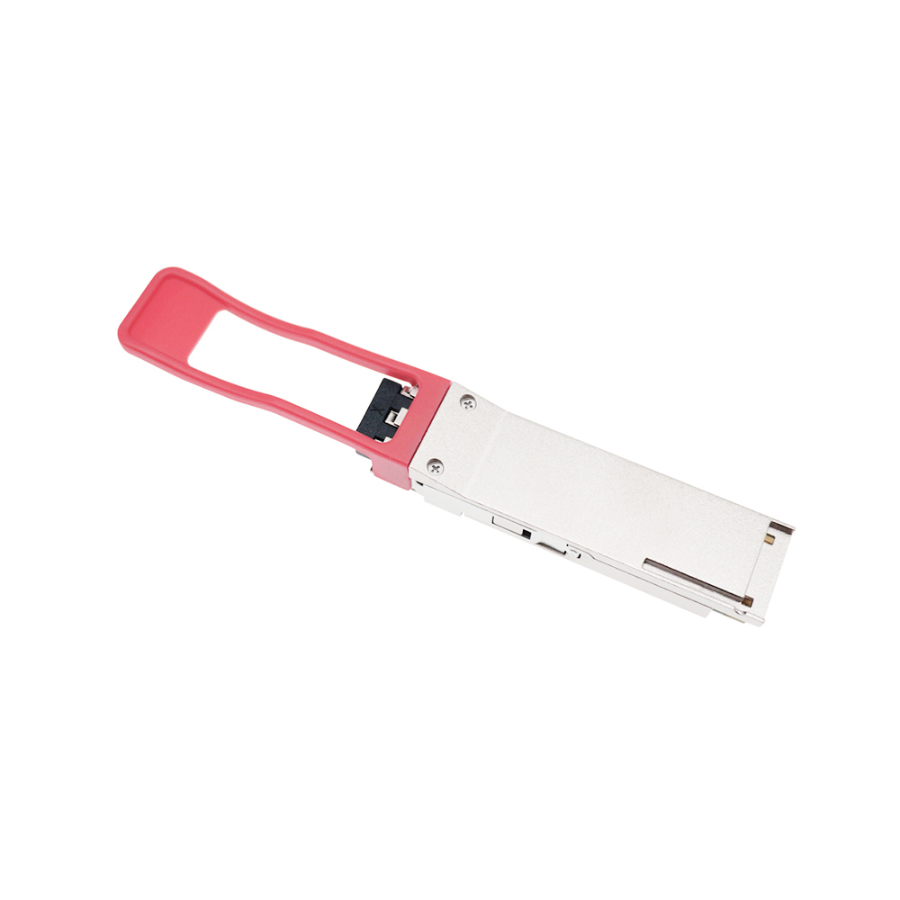

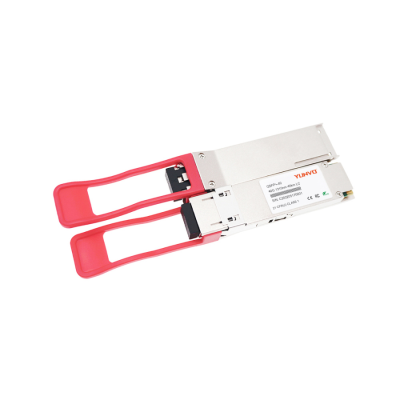

The transceiver module is designed for 40km optical communication applications. The design is compliant with 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals and converts them to 4-channel output electrical data.
Imaging
| QSFP+ ER4 | P/N Data Rate Wavelength Reach Connector Tx Power Rx Sensitivity Source YV-QSFP+-ER4 40Gbps CWDM4 40km Dual LC -2.7~4.5db ≤-21.2db DFB+APD |
