Key Features
* Quad Small Form-factor Pluggable (QSFP)
* Maximum Aggregate Data Rate 100Gbps
* EDR, FDR, QDR, DDR, SDR (Infiniband)
* 10/25/40/100G Ethernet
* Bi-directional parallel link
* BER<1e-12 From 0 to 50-degree case temp
* CDR on/off automatically
* 10/14/25/28Gb/s per lane, x4 channels
* Up to 70m (OM3)
* Up to 100m (OM4)
* Low power consumption
* Round multi-mode fiber array
* 850nm VCSEL four array
* PIN diode four array
* Hot-Pluggable
* I2C management interface
* 3.3V power supply voltage
* Maximum 2W power consumption
Read More Less
The active optical cables (AOC) allow bi-directional 100Gbps transmission suitable for high-performance computing (HPC) clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption, and lightweight.
| Part Number | Description |
| YV-QSFP28-AxM | 100G QSFP28 to 100G QSFP28 AOC x=0.5~100meter |

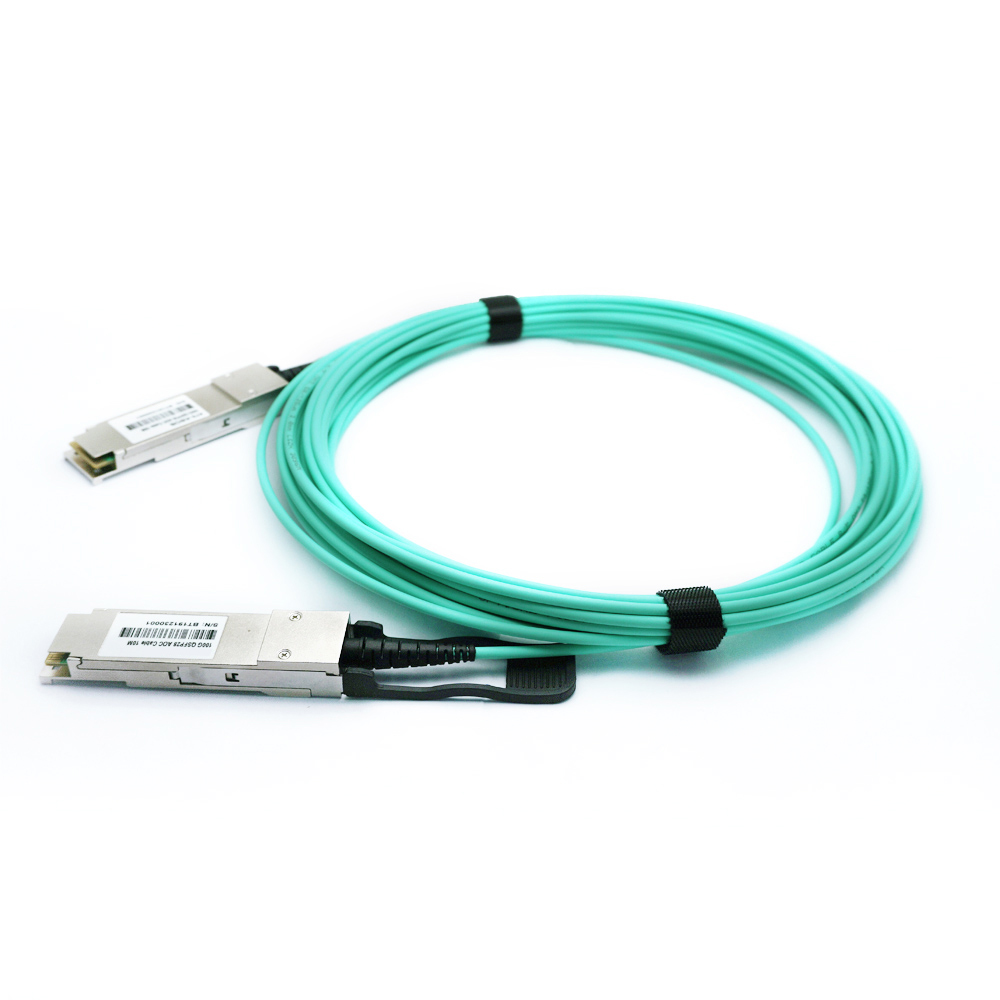

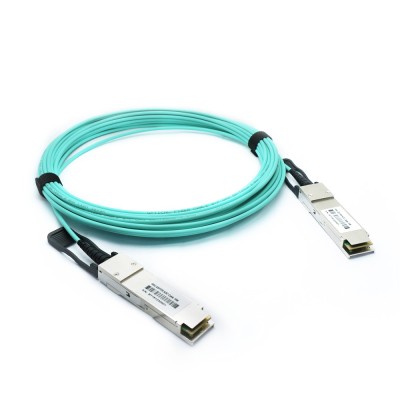

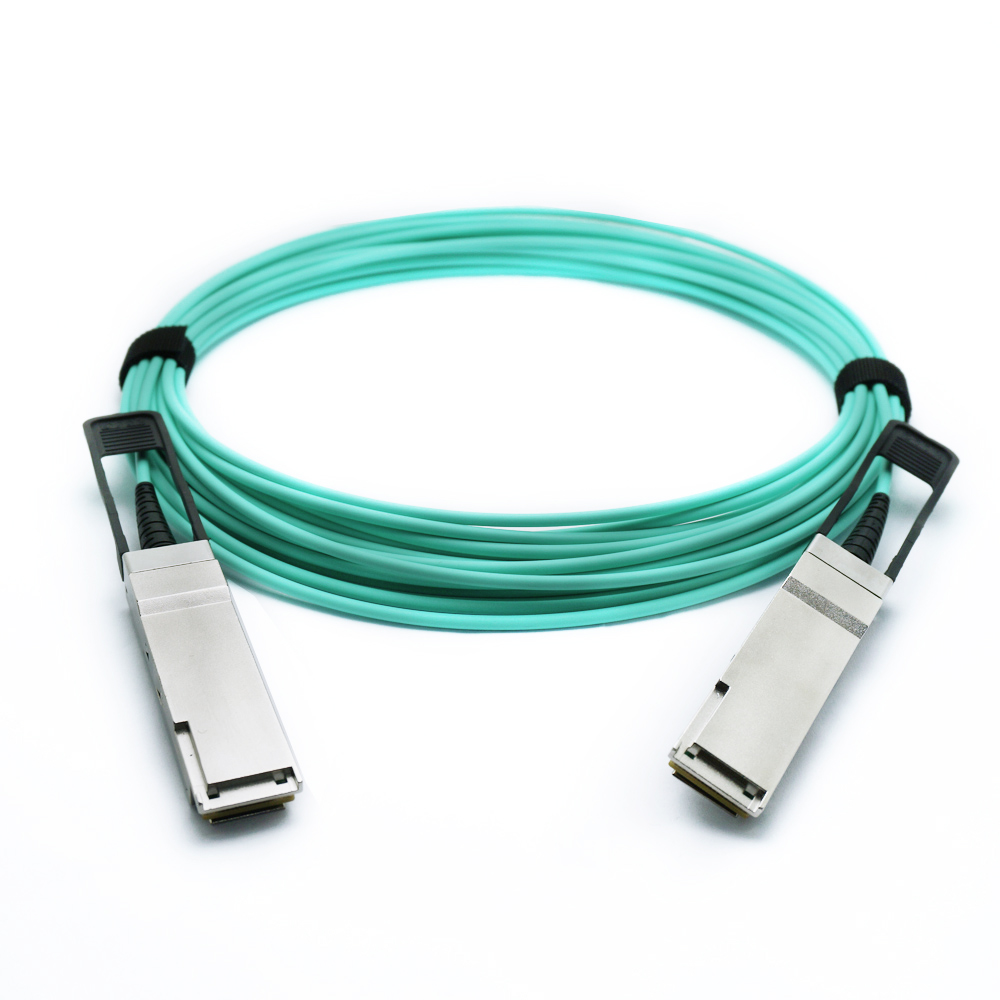

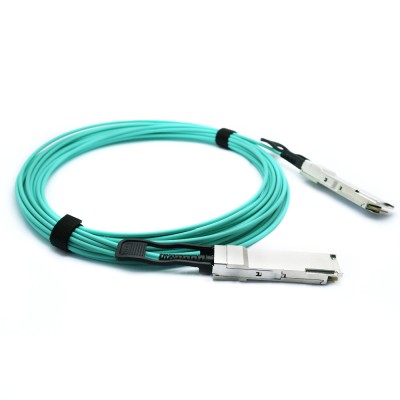

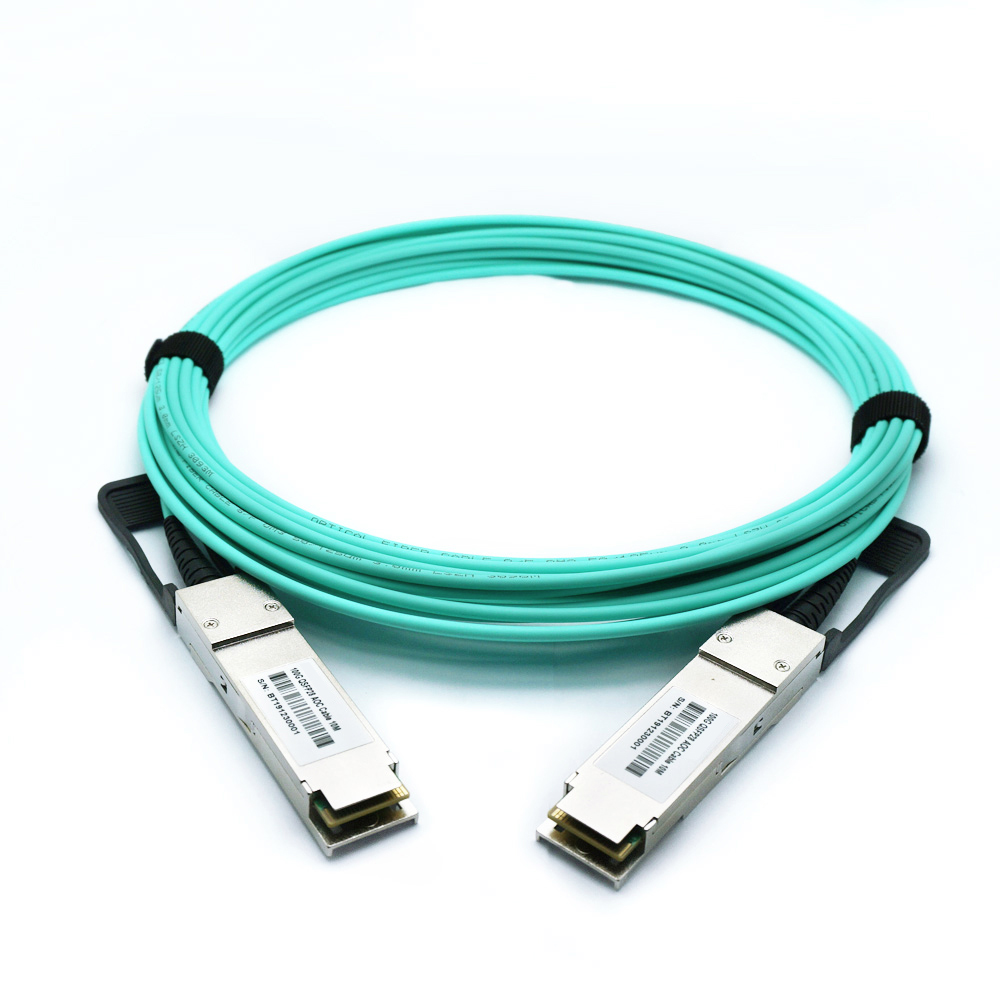

Imaging
| QSFP28 to QSFP28 AOC | QSFP28 to QSFP28 AOC |
