Key Features
* QSFP28 conforms to the Small Form Factor SFF-8665
* 4-Channel Full-Duplex Passive Copper Cable Transceiver
* Support for multi-gigabit data rates:25.78Gb/s (per channel)
* Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)
* Copper link length up to 3m (passive limiting)
* High-Density QSFP 38-PIN Connector
* Power Supply:+3.3V
* Low power consumption: 0.02 W (typ.)
* I2C-based two-wire serial interface for EEPROM signature which can be customized
* Temperature Range: 0~ 70 °C
* ROHS Compliant
Read More Less
The 100G QSFP28 Passive Copper Cables are high-performance, cost-effective I/O solutions for 100G LAN, HPC, and SAN applications. The QSFP28 passive copper cables are compliant with SFF-8436. It offers a low power consumption, short reach interconnect applications. The cable in each lane is capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 100Gb/s.
Imaging

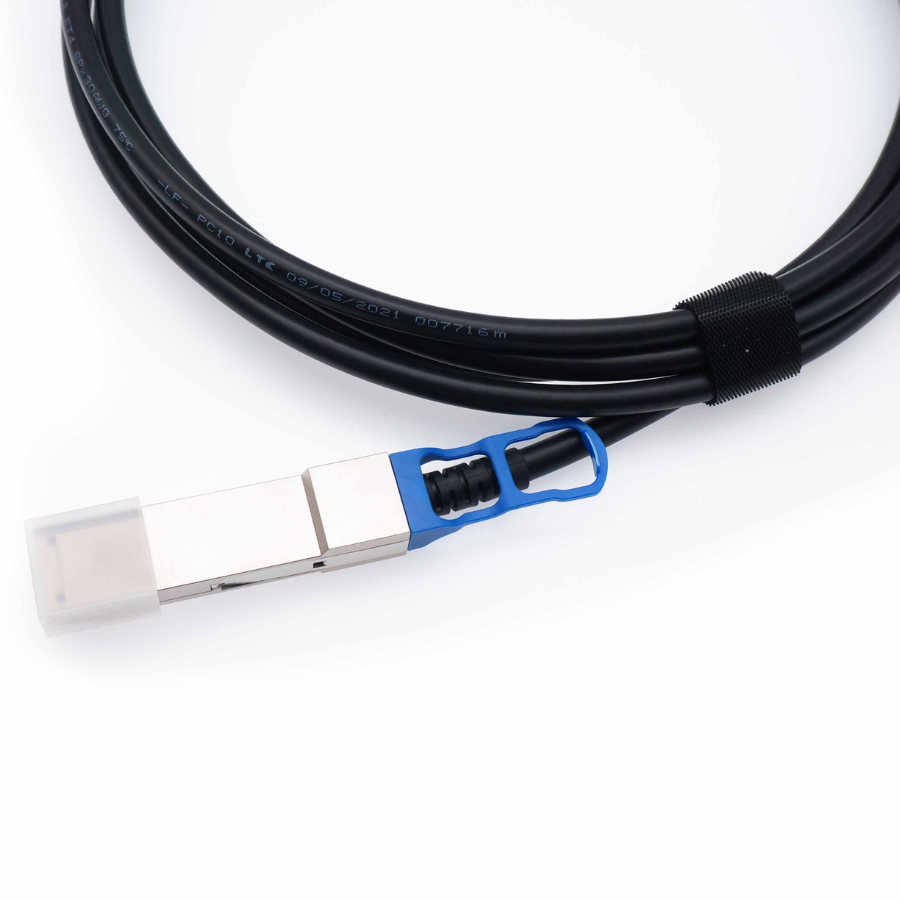

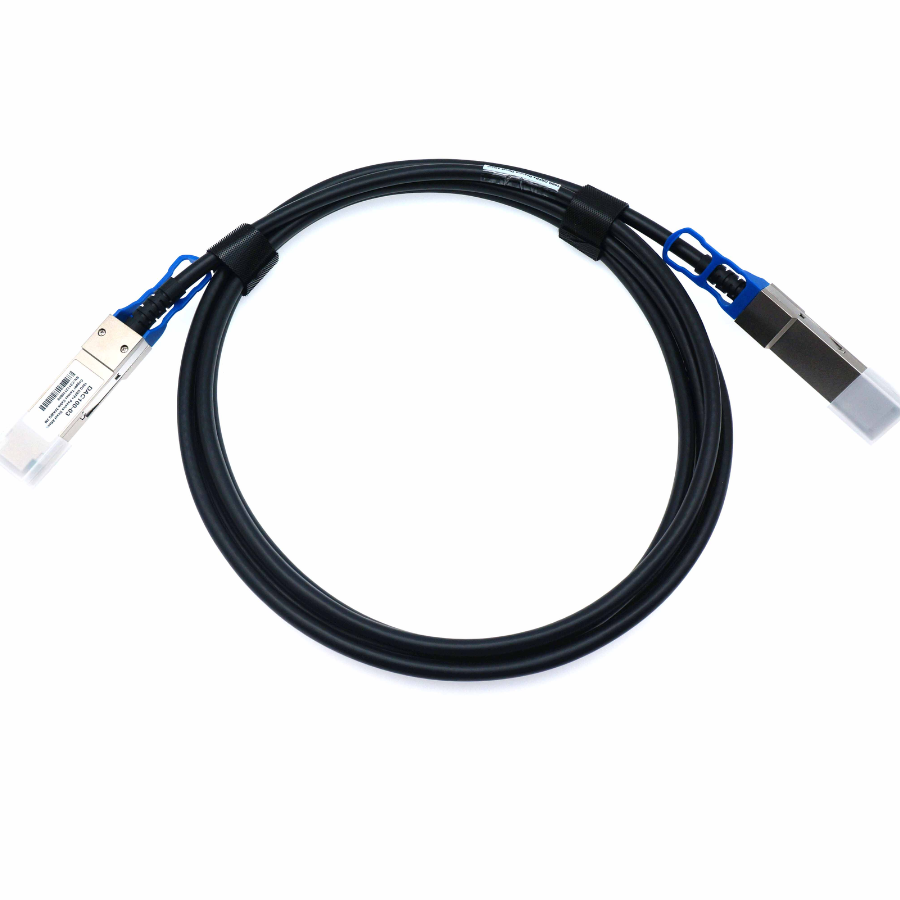

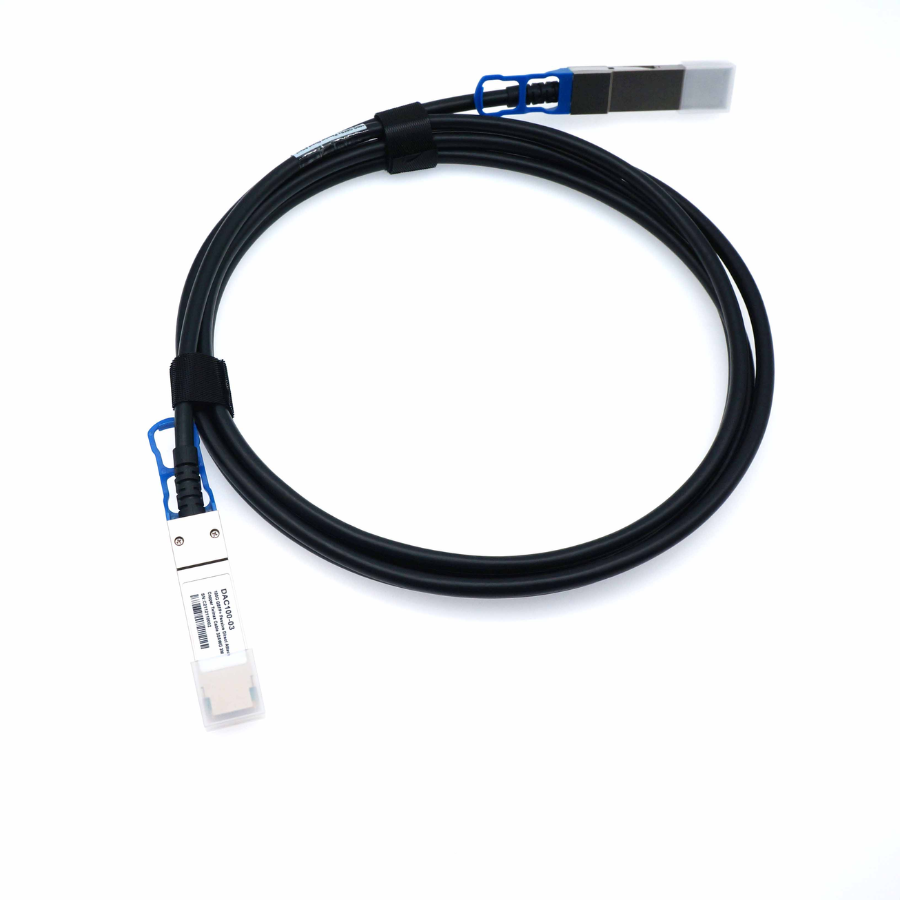

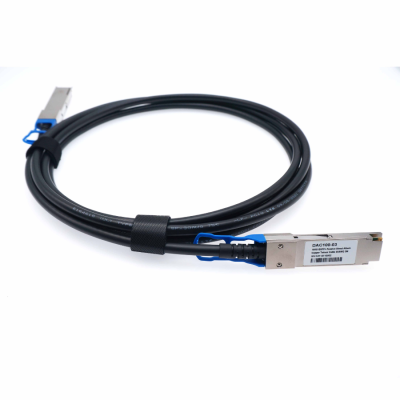

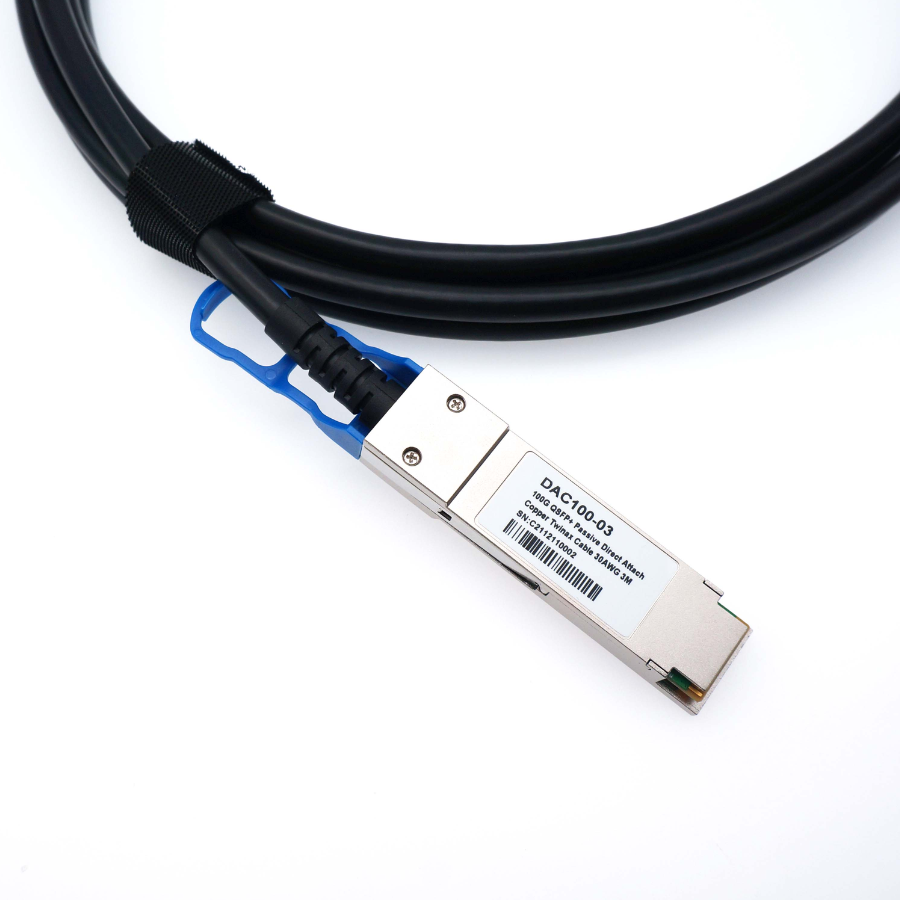

| QSFP28 to QSFP28 DAC | QSFP28 to QSFP28 DAC |
