Key Features
Read More Less
Recording Monitor with Camera to Cloud Support

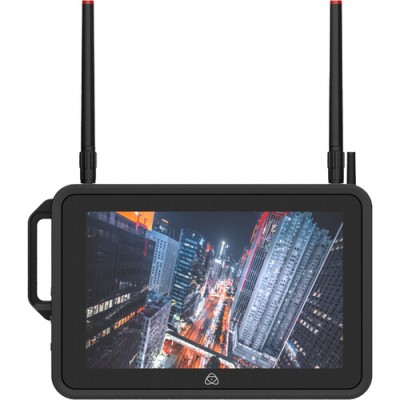

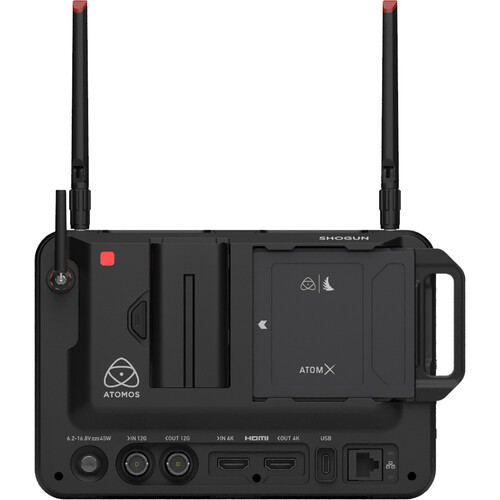

The Shogun CONNECT from Atomos expands upon the HDR recording and monitoring capabilities of the Shogun by integrating cloud connectivity via its multiple wireless interfaces. The 7" 1920 x 1200 touchscreen display boasts a brightness of 2000 cd/m². A loop-through 12G-SDI input and output interface supports SDI RAW recording. Both the HDMI and 12G-SDI connections can record, monitor, and transmit 4K video with ease. Record and store your footage using the SATA 3 SSD slot compatible with Master Caddy II/III and AtomX SSD mini. Power for the Shogun CONNECT can be achieved via the locking DC jack or with a separately available L-series battery.
CONNECT Upgrades
Atomos AirGlu Technology
Add wireless timecode, sync, and control to your Shogun CONNECT. AirGlu enables direct, long-range communication between devices up to 0.2 miles and wireless timecode lock to multiple Atomos devices, compatible cameras, audio recorders, and software applications. Relay recording, battery status, and disk capacity to the configured server unit, which can be any AirGlu-compatible device.
Frame.io Camera-to-Cloud Device
Adobe Frame.io support makes the Shogun CONNECT a camera-to-cloud device, allowing you to take footage from your camera and transfer it over a long-range connection between other devices. Wi-Fi 6, Bluetooth LE, Gigabit Ethernet, and USB-C connection ensure flexible, all-around connectivity. Remote collaboration brings production and post-production closer together with features like dual recording and progressive transfer technology.
Shogun Control
Monitor Assist Functions
Imaging
Shogun CONNECT | 2 x 12G-SDI, 2 x HDMI, 1 x USB Type-C |
