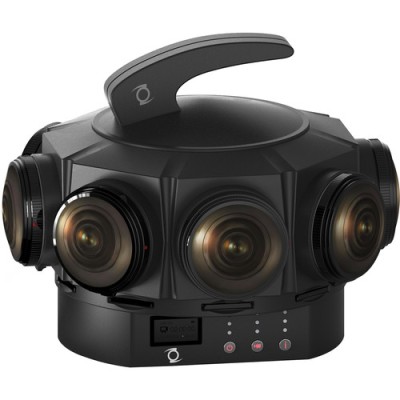

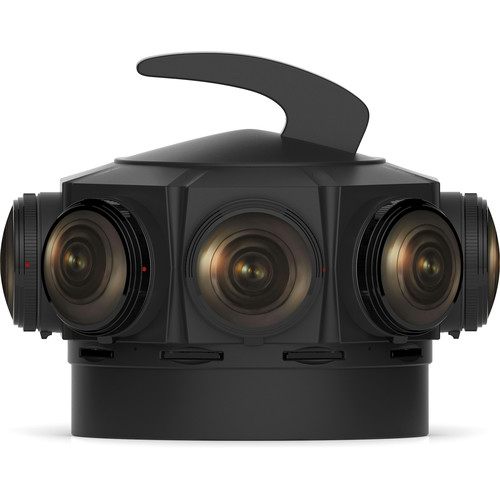

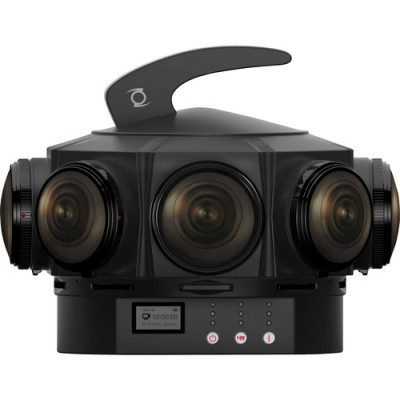

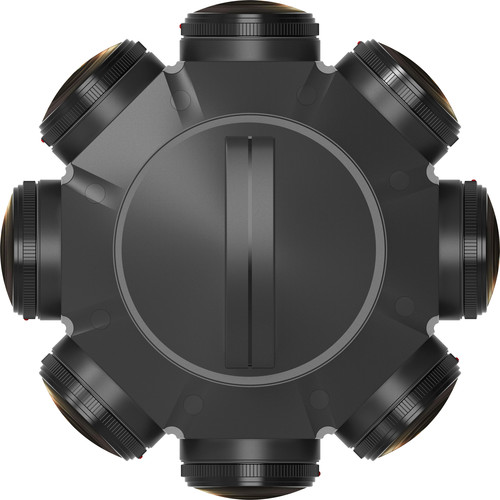

The Z CAM V1 Pro Cinematic VR Camera features nine MFT-mount lenses (8 + 1 on top) and outputs up to 8K/30 single-eye resolution (mono), 7K/30 dual-eye (stereo), or 4K/60 in either mode. Nine Sony EXMOR 4/3" CMOS sensors record individually to a separate SD card slot (SD cards sold separately) and then all recordings can be transferred to your computer over a single Ethernet cable via the 10Gb Ethernet port on the camera. Once the footage is exported to your computer, the included (free download) Z CAM WonderStitch software will stitch the images together fully automatically.

Live 360º stereo streaming​ (powered by NVIDIA).
Post-Stitching Resolution

• Mono: 8K at 30 fps
• Stereo: 7K at 30 fps
• 4K at 60 fps (stereo/mono)

Gigabit Ethernet Port Output

• Transfer recorded images to computer
• Control settings and live streaming optional through Z CAM Controller

Lenses, Sensors, Storage, Processors

• Nine (8+1 on top) 190° fisheye f/2.8-11 lenses
• Nine Sony EXMOR 4/3 CMOS image sensors
• Nine SD card slots (SDXC Class 10 SD cards required—sold separately; Z CAM recommends Extreme Pro 95 MB/s SD cards)
• Nine HiSilicon 3519 V101 processors

Recording

• MOV/H.264

ISO, Exposure, WB, Gamma

• ISO 100 - 6400 (auto/manual)
• Exposure: Auto, manual, coordinated
• White balance: Auto, manual, coordinated
• Z-Log proprietary gamma setting for expanded color grading

Audio

• Four built-in directional mono microphones
• AAC encoding

Other

• Full metal housing
• Dual LEMO connectors supporting hot swapping
• 12 VDC, 3.8A power adapter unit included

  What's In The Box?


  What's In The Box?

• Z CAM V1 Pro camera unit (equipped with 9x VRCA190 lens)
• Lemo power cable
• DC D-Tap connector cable
• AC/DC Power Adapter Unit
• Power Connection Cables (US, UK, EU)
• Quick User Guide
• Protective Carrying Case

  ---

  Technical Specifications

  Disclaimer: All product features and technical specifications stated are subject to Z CAM’s sole interpretation and explanation.

  Spherical Resolution	Mono 8K @30fps / 4K @60fps, Stereo 7K @30fps / 4K @60fps *post stitching output
  Number of lens/sensor modules	8+1, total 9
  Lens	Premium 190º fisheye lens f/2.8-11
  Image Sensor	Sony EXMOR™ 4/3” CMOS Image Sensor
  Video Format	MOV
  Video Encoder	H.264

  ISO	Auto, Manual (ISO 100~6400)
  Exposure	Auto, Manual, and Coordinated
  White Balance	Auto, Manual, Coordinated
  Professional Gamma Setting	Z-Log (a proprietary gamma setting for professionals that require more room for color grading.)
  Synchronization	Built-in Z CAM™ Sync Hardware solution
  Microphone	4 x Directional Mono Microphone
  Audio Encoder	AAC
  Storage	9 x SDXC Class 10 SD card. Support up to 128GB. *Recommend to use SanDisk Extreme Pro 95MB/s SD card. Not included in the package.

  Gigabit Ethernet Port	For control setting and live streaming through Z CAM Controller
  Power	DC 12V 3.8A, dual LEMO connectors supporting hot swap
  Housing	Full metal housing, Aluminium Alloy
  Weight	2.93kg (net, without lens covers)
  Size & Dimension	19.9cm diameter x 11cm height (15.3cm with cap)
